# Debugging a file

### Debugging

<details>

<summary>X64dbg</summary>

We can use a debugging tool such as X64dbg in Windows.

Let's start `x64dbg`, navigate to `Options` -> `Preferences`, and uncheck everything except `Exit Breakpoint.`

By unchecking the other options, the debugging will start directly from the application's exit point, and we will avoid going through any `dll` files that are loaded before the app starts. Then, we can select `file` -> `open` and select the `executable` to import it and start the debugging. Once imported, we right click inside the `CPU` view and `Follow in Memory Map`:

<figure><img src="https://884699202-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FC4CcD9gCTFzGtXx2V5PP%2Fuploads%2FsaULP58KE6L2nhAQpdXe%2Fimage.png?alt=media&amp;token=ceb20cb1-2d3e-4bbc-b255-0ced6793465d" alt=""><figcaption></figcaption></figure>

</details>

<details>

<summary>Jar files</summary>

The `.jar` is a Java Archive file, and its content can be extracted by right-clicking on it and selecting `Extract files`.

Decompile .jar application

We can use [JD-GUI](http://java-decompiler.github.io/), and dragging and dropping the `.jar` onto the `jd-gui.`

### Compile&#x20;

```bash
jar -cmf .\META-INF\MANIFEST.MF ..\fatty-client-new.jar *
```

</details>

<details>

<summary>GDP - PEDA</summary>

Using tools like [PEDA](https://github.com/longld/peda) (Python Exploit Development Assistance for GDB) we can further examine the file. This is an extension of the standard GNU Debugger (GDB), which is used for debugging C and C++ programs. GDB is a command line tool that lets you step through the code, set breakpoints, and examine and change variables. Running the following command we can execute the binary through it.

Attacking Applications Connecting to Services

```bash
HackJiji@htb[/htb]$ gdb ./octopus_checker

GNU gdb (Debian 9.2-1) 9.2
Copyright (C) 2020 Free Software Foundation, Inc.
License GPLv3+: GNU GPL version 3 or later <http://gnu.org/licenses/gpl.html>
This is free software: you are free to change and redistribute it.
There is NO WARRANTY, to the extent permitted by law.
Type "show copying" and "show warranty" for details.
This GDB was configured as "x86_64-linux-gnu".
Type "show configuration" for configuration details.
For bug reporting instructions, please see:
<http://www.gnu.org/software/gdb/bugs/>.
Find the GDB manual and other documentation resources online at:
    <http://www.gnu.org/software/gdb/documentation/>.

For help, type "help".
Type "apropos word" to search for commands related to "word"...
Reading symbols from ./octopus_checker...
(No debugging symbols found in ./octopus_checker)
```

Once the binary is loaded, we set the `disassembly-flavor` to define the display style of the code, and we proceed with disassembling the main function of the program.

Code: assembly

```bash
gdb-peda$ set disassembly-flavor intel
gdb-peda$ disas main

Dump of assembler code for function main:
   0x0000555555555456 <+0>:	endbr64
   0x000055555555545a <+4>:	push   rbp
   0x000055555555545b <+5>:	mov    rbp,rsp

 <SNIP>

   0x0000555555555625 <+463>:	call   0x5555555551a0 <_ZStlsISt11char_traitsIcEERSt13basic_ostreamIcT_ES5_PKc@plt>
   0x000055555555562a <+468>:	mov    rdx,rax
   0x000055555555562d <+471>:	mov    rax,QWORD PTR [rip+0x299c]        # 0x555555557fd0
   0x0000555555555634 <+478>:	mov    rsi,rax
   0x0000555555555637 <+481>:	mov    rdi,rdx
   0x000055555555563a <+484>:	call   0x5555555551c0 <_ZNSolsEPFRSoS_E@plt>
   0x000055555555563f <+489>:	mov    rbx,QWORD PTR [rbp-0x4a8]
   0x0000555555555646 <+496>:	lea    rax,[rbp-0x4b7]
   0x000055555555564d <+503>:	mov    rdi,rax
   0x0000555555555650 <+506>:	call   0x555555555220 <_ZNSaIcEC1Ev@plt>
   0x0000555555555655 <+511>:	lea    rdx,[rbp-0x4b7]
   0x000055555555565c <+518>:	lea    rax,[rbp-0x4a0]
   0x0000555555555663 <+525>:	lea    rsi,[rip+0xa34]        # 0x55555555609e
   0x000055555555566a <+532>:	mov    rdi,rax
   0x000055555555566d <+535>:	call   0x5555555551f0 <_ZNSt7__cxx1112basic_stringIcSt11char_traitsIcESaIcEEC1EPKcRKS3_@plt>
   0x0000555555555672 <+540>:	lea    rax,[rbp-0x4a0]
   0x0000555555555679 <+547>:	mov    edx,0x2
   0x000055555555567e <+552>:	mov    rsi,rbx
   0x0000555555555681 <+555>:	mov    rdi,rax
   0x0000555555555684 <+558>:	call   0x555555555329 <_Z13extract_errorNSt7__cxx1112basic_stringIcSt11char_traitsIcESaIcEEEPvs>
   0x0000555555555689 <+563>:	lea    rax,[rbp-0x4a0]
   0x0000555555555690 <+570>:	mov    rdi,rax
   0x0000555555555693 <+573>:	call   0x555555555160 <_ZNSt7__cxx1112basic_stringIcSt11char_traitsIcESaIcEED1Ev@plt>
   0x0000555555555698 <+578>:	lea    rax,[rbp-0x4b7]
   0x000055555555569f <+585>:	mov    rdi,rax
   0x00005555555556a2 <+588>:	call   0x5555555551d0 <_ZNSaIcED1Ev@plt>
   0x00005555555556a7 <+593>:	cmp    WORD PTR [rbp-0x4b2],0x0

<SNIP>

   0x0000555555555761 <+779>:	mov    rbx,QWORD PTR [rbp-0x8]
   0x0000555555555765 <+783>:	leave
   0x0000555555555766 <+784>:	ret
End of assembler dump.
```

This reveals several call instructions that point to addresses containing strings. They appear to be sections of a SQL connection string, but the sections are not in order, and the endianness entails that the string text is reversed. Endianness defines the order that the bytes are read in different architectures. Further down the function, we see a call to SQLDriverConnect.

Code: assembly

```bash
   0x00005555555555ff <+425>:	mov    esi,0x0
   0x0000555555555604 <+430>:	mov    rdi,rax
   0x0000555555555607 <+433>:	call   0x5555555551b0 <SQLDriverConnect@plt>
   0x000055555555560c <+438>:	add    rsp,0x10
   0x0000555555555610 <+442>:	mov    WORD PTR [rbp-0x4b4],ax
```

Adding a breakpoint at this address and running the program once again, reveals a SQL connection string in the RDX register address, containing the credentials for a local database instance.

{% hint style="info" %}
Sometimes, setting a breakpoint at the memory address gives an error. Try setting a breakpoint at the function name. E.g. b SQLDriverConnect and run the program again to retrieve credentials.
{% endhint %}

Code: assembly

```bash
gdb-peda$ b *0x5555555551b0

Breakpoint 1 at 0x5555555551b0


gdb-peda$ run

Starting program: /htb/rollout/octopus_checker
[Thread debugging using libthread_db enabled]
Using host libthread_db library "/lib/x86_64-linux-gnu/libthread_db.so.1".
Program had started..
Attempting Connection
[----------------------------------registers-----------------------------------]
RAX: 0x55555556c4f0 --> 0x4b5a ('ZK')
RBX: 0x0
RCX: 0xfffffffd
RDX: 0x7fffffffda70 ("DRIVER={ODBC Driver 17 for SQL Server};SERVER=localhost, 1401;UID=username;PWD=password;")
RSI: 0x0
RDI: 0x55555556c4f0 --> 0x4b5a ('ZK')

<SNIP>
```

Apart from trying to connect to the MS SQL service, penetration testers can also check if the password is reusable from users of the same network.

</details>

<details>

<summary>DLL's</summary>

A DLL file is a `Dynamically Linked Library` and it contains code that is called from other programs while they are running. The `MultimasterAPI.dll` binary is found on a remote machine during the enumeration process. Examination of the file reveals that this is a .Net assembly.

Attacking Applications Connecting to Services

```powershell-session
C:\> Get-FileMetaData .\MultimasterAPI.dll

<SNIP>
M
 .NETFramework,Version=v4.6.1
 TFrameworkDisplayName.NET Framework 4.6.1

 api/getColleagues
       !
 htt
p://localhost:8081
*POST         Ò^
  øJ  ø,  RSDSœ»¡ÍuqœK£"Y¿bˆ
   C:\Users\Hazard\Desktop\Stuff\Multimast
<SNIP>
```

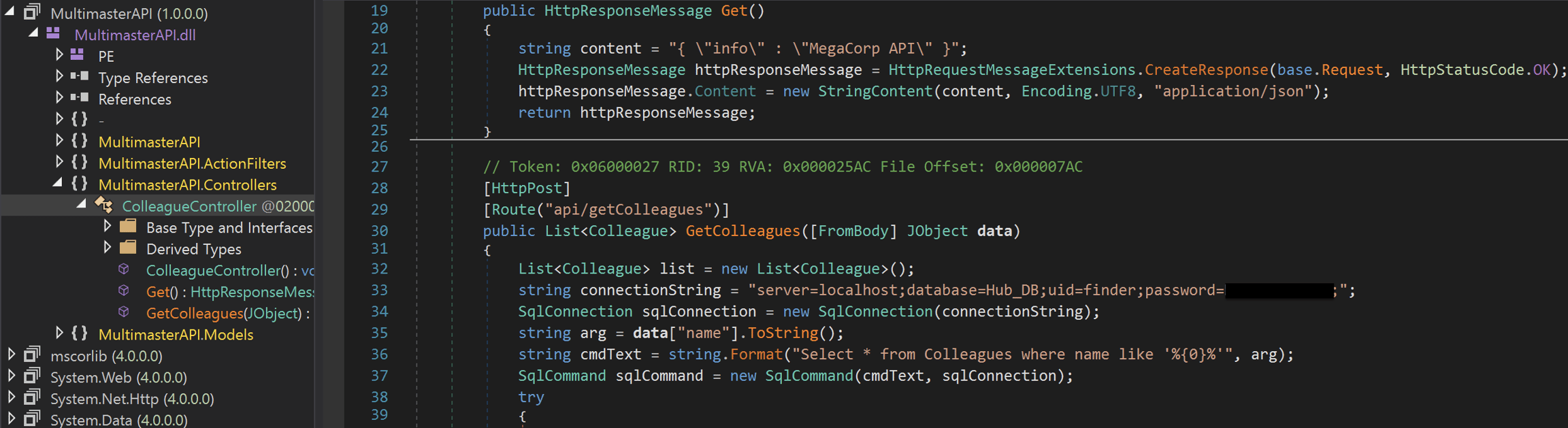

Using the debugger and .NET assembly editor [dnSpy](https://github.com/0xd4d/dnSpy), we can view the source code directly. This tool allows reading, editing, and debugging the source code of a .NET assembly (C# and Visual Basic). Inspection of `MultimasterAPI.Controllers` -> `ColleagueController` reveals a database connection string containing the password.

![Code editor showing MultimasterAPI with methods Get and GetColleagues, including SQL connection string.](https://cdn.services-k8s.prod.aws.htb.systems/content/modules/113/apps_conn_to_services/dnspy_hidden.png)

Apart from trying to connect to the MS SQL service, attacks like password spraying can also be used to test the security of other services.

</details>
